Electric kettles have become indispensable appliances in modern kitchens, offering a fast and efficient way to boil water for various purposes, from making tea and coffee to preparing instant meals. These devices have evolved significantly over the years, incorporating advanced technology and safety features. This article delves into the intricate workings of modern electric kettles, explaining their components, functionality, and the science behind their operation.
At their core, electric kettles operate on the principle of converting electrical energy into heat. This is achieved through a heating element, typically a thick coil of metal with high electrical resistance. When an electric current passes through this element, it heats up rapidly, transferring the heat to the water in the kettle[1].

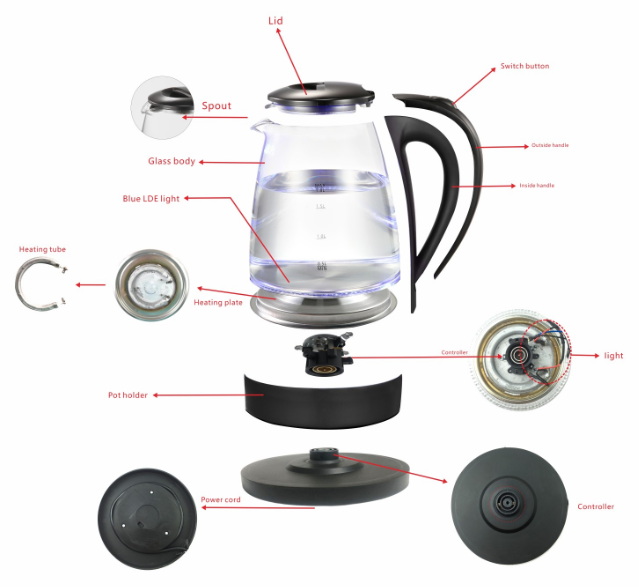

Modern electric kettles comprise several key components that work together to ensure efficient and safe operation[2]:
- Heating Element: The heating element is the heart of the electric kettle, responsible for generating heat. It is usually made of a material with high resistance, such as nichrome (an alloy of nickel and chromium)[9].
- Kettle Body: The body of the kettle holds the water to be heated. It can be made from various materials, including stainless steel, glass, ceramic, or plastic[9].
- Base Plate: The base plate is the foundation of the electric kettle, providing a stable platform and housing the electrical connections. It is typically made of plastic and contains a connector that interfaces with the kettle body[12].
- Power Switch: The power switch initiates and terminates the heating process. It is usually located on the handle or the base of the kettle and often includes an indicator light to show when the kettle is in operation[2].
- Thermostat: The thermostat is a crucial safety component that monitors the water temperature and automatically shuts off the kettle when the water reaches boiling point or if the kettle is empty[2].
- Lid: The lid covers the opening of the kettle, preventing steam from escaping and ensuring efficient heating. It often includes a locking mechanism for safety[4].
- Handle: The handle provides a comfortable and secure grip for pouring water. It is typically made of heat-resistant plastic to protect the user from burns[4].
- Water Level Indicator: The water level indicator allows the user to easily see how much water is in the kettle, preventing overfilling or underfilling[4].
1. Electricity Flow: When the kettle is placed on the base plate and the power switch is turned on, electricity flows from the power outlet through the base plate to the heating element[12].
2. Heat Generation: As the electric current passes through the high-resistance heating element, it encounters resistance, causing the element to heat up rapidly. This phenomenon is known as Joule heating[3].
3. Heat Transfer: The heat generated by the heating element is then transferred to the water through direct contact. The efficiency of this heat transfer is maximized by placing the heating element at the bottom of the kettle, ensuring that all the water is heated evenly[1].
4. Rapid Boil Technology: Many modern kettles incorporate rapid boil technology, which uses a more powerful heating element to heat water in a fraction of the time[3].
5. Energy Efficiency: Modern electric kettles are designed to be energy-efficient, minimizing heat loss and reducing electricity wastage[3].
The thermostat is one of the most critical safety features in an electric kettle. It prevents overheating and ensures that the kettle switches off automatically once the water reaches boiling point[12].
The simplest type of thermostat is the bimetallic thermostat. It consists of a bimetallic strip made of two different metals with different thermal expansion rates[7].
1. Bending: When the water boils, the steam produced comes into contact with the bimetallic strip, causing it to heat up. Since the two metals expand at different rates, the strip bends[13].
2. Switching Off: The bending of the bimetallic strip triggers a mechanical switch that cuts off the power supply to the heating element, turning off the kettle[12].
Another type of thermostat uses a steam-activated switch. This type of switch relies on the steam produced by the boiling water to trigger the shut-off mechanism[8].
1. Steam Impact: When the water boils, the steam travels through a small hole to a bimetallic disc located near the top of the kettle[5].
2. Deformation: The steam causes the bimetallic disc to heat up and deform, which then activates a lever that disconnects the power switch[8].
To prevent damage to the kettle if it is accidentally turned on without water, many electric kettles are equipped with an anti-dry thermostat[2].
1. Heat Conduction: This thermostat is located at the bottom of the heating plate and is designed to respond to rapid temperature increases[2].
2. Power Disconnection: If the kettle is turned on without water, the heating element will quickly overheat, causing the anti-dry thermostat to trip and disconnect the power supply[2].
Modern electric kettles come with a range of advanced features that enhance their functionality and convenience[3]:
- Temperature Settings: Some kettles allow users to select specific temperature settings, which is particularly useful for brewing different types of tea and coffee that require different temperatures[3].
- Keep Warm Function: This function maintains the water at a desired temperature for an extended period, which is convenient for those who want to have hot water readily available[3].
- Smart Kettle Innovations: Some electric kettles can be controlled via smartphone apps or voice assistants, offering remote operation, boil notifications, and more[3].
The materials used in electric kettles play a crucial role in their performance, durability, and safety[9]:
- Stainless Steel: Stainless steel is a popular choice for kettle bodies due to its durability, resistance to corrosion, and sleek appearance[6].
- Glass: Glass kettles allow users to see the water boiling, adding a visual appeal. They are also easy to clean and do not impart any taste to the water[9].
- Plastic: Some kettles use heat-resistant plastic for the body, handle, and other components. It is important to ensure that the plastic is food-grade and BPA-free to prevent harmful chemicals from leaching into the water[2].
- Nichrome: Nichrome (80% nickel and 20% chromium) is commonly used for the heating element due to its high resistance and ability to withstand high temperatures without oxidizing[9].
Safety is a paramount concern in the design of electric kettles. Several safety measures are incorporated to protect users from potential hazards[2]:
- Automatic Shut-Off: This feature automatically turns off the kettle when the water reaches boiling point, preventing overheating and saving energy[3].
- Boil-Dry Protection: This feature prevents the kettle from operating if there is no water inside, protecting the heating element from damage[3].
- Cool-Touch Exterior: Some kettles have a cool-touch exterior, which prevents the surface from becoming too hot to handle[9].
- Lid Locking Mechanism: A locking lid prevents accidental spills and ensures that the lid remains securely closed during operation[5].
- Stable Base: A stable base prevents the kettle from tipping over, reducing the risk of burns[4].
To prolong the life of your electric kettle and ensure optimal performance, follow these maintenance tips:
- Regular Cleaning: Clean the kettle regularly to remove mineral deposits that can accumulate over time. Use a mixture of water and vinegar or a commercial descaling solution[9].
- Descaling: Descale the kettle periodically to remove limescale buildup, which can reduce heating efficiency and affect the taste of the water[9].
- Avoid Overfilling: Do not overfill the kettle, as this can cause water to spill out and damage the electrical components[4].
- Check the Power Cord: Regularly check the power cord for any signs of damage, such as fraying or cracking. If the cord is damaged, replace it immediately[2].
Modern electric kettles are marvels of engineering, combining efficiency, convenience, and safety in a single appliance. Understanding their components, functionality, and safety features can help you appreciate the technology behind these indispensable kitchen tools. From rapid boil technology and precise temperature control to automatic shut-off and boil-dry protection, modern electric kettles are designed to meet the diverse needs of today's consumers while ensuring a safe and efficient user experience. Regular maintenance and proper use will ensure that your electric kettle continues to provide you with hot water quickly and reliably for years to come.
Electric kettles use a thermostat, often a bimetallic strip, that bends when it reaches a certain temperature. This bending triggers a switch that cuts off the power supply, turning off the kettle[7].
The heating element is typically made of nichrome, an alloy of nickel and chromium. This material has high electrical resistance and can withstand high temperatures without oxidizing[9].
To clean your electric kettle, you can use a mixture of water and vinegar or a commercial descaling solution. Boil the mixture in the kettle and then rinse thoroughly to remove mineral deposits and limescale[9].
Boil-dry protection is a safety feature that prevents the kettle from operating if there is no water inside. It uses a thermostat that detects rapid temperature increases and automatically shuts off the kettle to protect the heating element from damage[3].
Yes, some modern electric kettles come with smart features that allow you to control them via smartphone apps or voice assistants. These features offer remote operation, boil notifications, and more[3].
