Building an electric brew kettle is a rewarding project for homebrewers, offering precise temperature control, efficiency, and convenience. This comprehensive guide will walk you through the process of constructing your own electric brew kettle, from selecting the right components to final assembly and testing.
Electric brewing systems have become increasingly popular due to their ability to provide consistent and efficient heating. Unlike traditional stovetop or propane setups, electric brew kettles allow for direct immersion of heating elements into the wort, resulting in faster and more precise temperature control.
- Efficiency: Electric brew kettles heat water or wort more efficiently than external heat sources like propane burners.
- Precision: They offer precise temperature control, which is crucial for achieving consistent brewing results.
- Convenience: With automated temperature control, brewers can set and forget, allowing for easier management of the brewing process.
To build an electric brew kettle, you'll need the following components:
1. Stainless Steel Vessel: A food-grade stainless steel kettle, typically 10 to 15 gallons, is ideal for a standard 5-gallon brew batch.
2. Heating Elements: Low watt density (LWD) or ultra-low watt density (ULWD) elements are recommended to prevent scorching.
3. Temperature Sensors: A PT100 or similar temperature probe ensures accurate temperature readings.
4. Control Panel: This includes a PID controller, solid-state relay (SSR), and necessary wiring.
5. Fittings and Accessories: Ball valves, triclover fittings, and electrical connectors are essential for completing the setup.
When selecting heating elements, consider the wattage and type. A 5500W element is common for a 10-gallon kettle, but ensure it's LWD to minimize scorching risks. Blichmann Engineering's BoilerMaker Surface™ brew kettle uses ultra-low watt density elements, which evenly disperse heat along the bottom of the kettle, reducing the risk of scorching[2].
The control system is crucial for managing temperature and ensuring safety. Here's how to design it:
1. PID Controller: This device maintains precise temperature control by adjusting the heating element's power.
2. Solid-State Relay (SSR): Acts as a switch for the heating element, controlled by the PID.
3. Temperature Probe: Accurately measures the wort temperature.

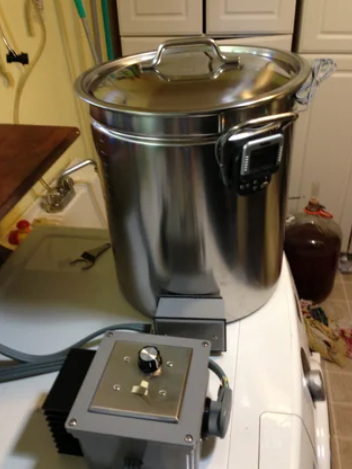

1. Mark and Drill Holes: Use a step drill to create holes for the heating element and temperature probe.
2. Install Heating Element: Ensure proper sealing with O-rings and locknuts to prevent leaks.
3. Install Temperature Probe: Position it opposite the heating element for accurate readings.
1. Mount PID and SSR: Secure them in an electrical enclosure.
2. Connect Wiring: Use heat shrink tubing to protect connections from moisture.
3. Add Safety Features: Include a Ground Fault Circuit Interrupter (GFCI) for electrical safety. GFCI protection is essential when working with electricity near liquids, as it can prevent electrical shock[3].
Blichmann Engineering's BoilerMaker Surface™ brew kettle features electric surface heating technology, which bonds the heating element to the underside of the kettle. This design eliminates the need for immersion heating elements, making cleaning easier and reducing the risk of scorching[2].
For more advanced setups, consider integrating a RIMS system. This involves using a dedicated heating element in a mash tube to maintain precise mash temperatures. RIMS systems are ideal for step mashing and can be integrated with triclover fittings for easy installation[3][4].
Before brewing, perform a water test to ensure all components function correctly:
1. Check for Leaks: Verify that all connections are watertight.
2. Test Temperature Control: Monitor the PID's ability to maintain set temperatures.
3. Calibrate the System: Adjust settings as needed for precise temperature control.
- Electrical Safety: Ensure all electrical components are properly grounded and protected by a GFCI.
- Thermal Safety: Use LWD or ULWD heating elements to minimize scorching risks.
- Physical Safety: Handle hot equipment with care, and ensure the kettle is securely positioned to prevent accidents.

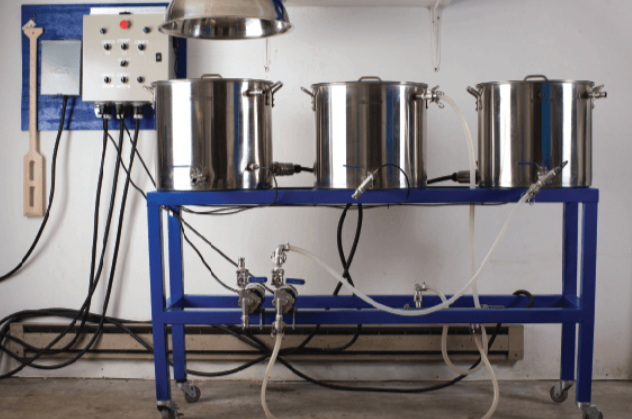

For those interested in a more comprehensive setup, consider building a full electric brewery. This can include multiple vessels for hot liquor, mash, and boil, each equipped with electric heating elements. A single-tier stand can be designed to accommodate these vessels, along with pumps and other accessories[3].
The stand should be sturdy enough to support the weight of the vessels and equipment. A common design involves using a rectangular structure with rails for mounting pumps and RIMS tubes. The stand can be fabricated from steel using a MIG welder or outsourced to a local weld shop[3].
Modern electric brewing systems often include automation features such as timers, automatic mash profiles, and hop addition reminders. These features enhance the brewing experience by allowing for more precise control over the brewing process[6].
Building an electric brew kettle offers homebrewers a versatile and efficient brewing solution. With precise temperature control and reduced risk of scorching, electric brew kettles are ideal for achieving consistent brewing results. Whether you're a beginner or an experienced brewer, this guide provides the necessary steps to construct a professional-grade electric brewing system.
For a standard 5-gallon brew batch, a kettle with a capacity of at least 10.5 gallons is recommended to accommodate the grain and water volume during brewing.
To prevent scorching, use low watt density (LWD) or ultra-low watt density (ULWD) heating elements. These elements distribute heat more evenly, reducing the risk of hot spots that can scorch the wort.
Food-grade 304 stainless steel is ideal for brew kettles due to its durability and resistance to corrosion.
Technically, yes, you can ferment in a brew kettle, but it's not recommended. Brew kettles are designed for boiling and heating, not for maintaining the stable temperatures required for fermentation.
Yes, it's recommended to use a dedicated 30A GFCI-protected circuit for safety and to ensure reliable operation of your electric brew kettle.
