Building an electric brew kettle is a rewarding project for homebrewers, offering precision temperature control, efficiency, and convenience. This comprehensive guide will walk you through the process of constructing your own electric brew kettle, from selecting the right components to final assembly and testing.
Electric brewing has become increasingly popular due to its ability to provide consistent and efficient heating. Unlike traditional stovetop or propane setups, electric brew kettles allow for direct immersion of heating elements into the wort, resulting in faster and more precise temperature control.
- Efficiency: Electric brew kettles heat water or wort more efficiently than external heat sources like propane burners.
- Precision: They offer precise temperature control, which is crucial for achieving consistent brewing results.
- Convenience: With automated temperature control, brewers can set and forget, allowing for easier management of the brewing process.
- Safety: No open flames are involved, making it safer for indoor use.

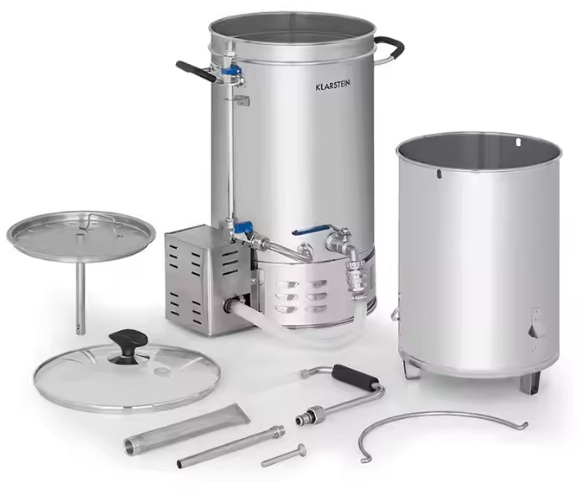

To build an electric brew kettle, you'll need the following components:

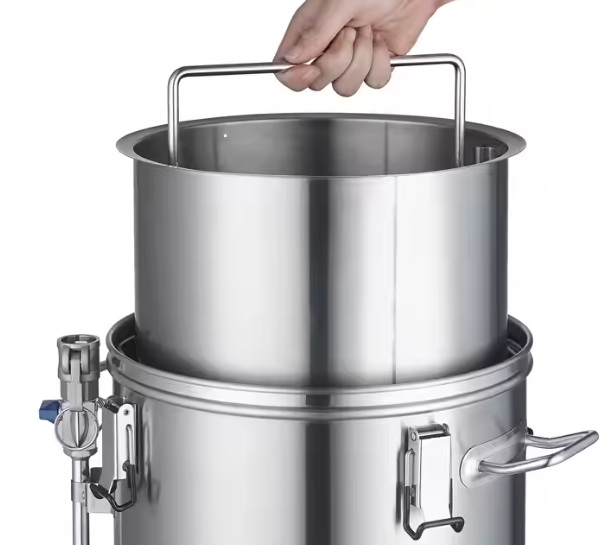

1. Stainless Steel Vessel: A food-grade stainless steel kettle, typically 10 to 15 gallons, is ideal for a standard 5-gallon brew batch. The size allows for adequate headspace during boiling and minimizes the risk of boilovers.
2. Heating Elements: Low watt density (LWD) or ultra-low watt density (ULWD) elements are recommended to prevent scorching. These elements distribute heat evenly across the bottom of the kettle, reducing hot spots.
3. Temperature Sensors: A PT100 or similar temperature probe ensures accurate temperature readings. This is crucial for precise control during brewing.
4. Control Panel: This includes a PID controller, solid-state relay (SSR), and necessary wiring. The PID controller maintains the desired temperature by adjusting the power to the heating element.
5. Fittings and Accessories: Ball valves, triclover fittings, and electrical connectors are essential for completing the setup. These components ensure safe and efficient operation.
When selecting heating elements, consider the wattage and type. A 5500W element is common for a 10-gallon kettle, but ensure it's LWD to minimize scorching risks. Blichmann Engineering's BoilerMaker Surface™ brew kettle uses ultra-low watt density elements, which evenly disperse heat along the bottom of the kettle, reducing the risk of scorching.
1. PID Controller: This device maintains precise temperature control by adjusting the heating element's power. It's essential to calibrate the PID for optimal performance.
2. Solid-State Relay (SSR): Acts as a switch for the heating element, controlled by the PID. SSRs are preferred over mechanical relays due to their reliability and silent operation.
3. Temperature Probe: Accurately measures the wort temperature. Ensure the probe is positioned correctly to avoid false readings.
1. Mark and Drill Holes: Use a step drill to create holes for the heating element and temperature probe. Ensure the holes are precisely aligned to avoid leaks.
2. Install Heating Element: Ensure proper sealing with O-rings and locknuts to prevent leaks. Apply a small amount of silicone sealant around the element for added security.
3. Install Temperature Probe: Position it opposite the heating element for accurate readings. This setup helps maintain uniform temperature distribution.
Blichmann Engineering's BoilerMaker Surface™ brew kettle features electric surface heating technology, which bonds the heating element to the underside of the kettle. This design eliminates the need for immersion heating elements, making cleaning easier and reducing the risk of scorching.
RIMS systems allow for precise temperature control during mashing by recirculating the wort through the mash tun. This setup is ideal for all-grain brewing methods, as it ensures consistent temperatures throughout the mash process.
HERMS systems use a heat exchanger to heat the mash water. This method provides excellent temperature control and is often used in conjunction with RIMS systems for optimal brewing performance.
A sturdy stand is essential for supporting your brew kettle and other equipment. Consider using stainless steel or aluminum for durability. The stand should be designed to accommodate all necessary components, including pumps, chillers, and fermenters.
A cooling system, such as a wort chiller, is crucial for rapidly cooling the wort after boiling. This step helps prevent contamination and promotes healthy fermentation.
While electric brew kettles are not designed for fermentation, integrating a temperature-controlled fermentation chamber can enhance the overall brewing process. This ensures optimal conditions for yeast growth and fermentation.
Before brewing, perform a water test to ensure all components are functioning correctly and there are no leaks. This step is essential for safety and efficiency.
- Ensure all electrical connections are secure and follow local electrical safety guidelines.
- Installing a GFCI (Ground Fault Circuit Interrupter) is highly recommended to prevent electrical shocks.
- Use a ULWD element to prevent scorching and always keep the element submerged in liquid.
- Regularly inspect the heating element and connections for signs of wear or damage.
If the heating element fails to heat, check for loose connections or damage to the element itself. Ensure the SSR is functioning correctly and the PID is calibrated properly.
If the temperature is not stabilizing, check the temperature probe for accuracy and ensure it's positioned correctly. Also, verify that the PID settings are appropriate for your brewing conditions.
Building an electric brew kettle is a rewarding project that offers precision and efficiency in the brewing process. With the right components and careful assembly, you can create a reliable brewing system that enhances your homebrewing experience. Whether you're a beginner or an experienced brewer, an electric brew kettle can elevate your brewing capabilities and provide consistent results.
For a 5-gallon brew, a 10 to 15-gallon kettle is recommended to allow for adequate headspace during boiling.
Use a ULWD heating element and ensure good circulation around the element. This reduces the risk of hot spots forming.
Food-grade stainless steel (e.g., 304 or 316) is preferred for its durability, ease of cleaning, and resistance to corrosion.
Electric brew kettles are not designed for fermentation. Fermentation requires a separate vessel with temperature control, typically a fermenter.
Yes, ensure your electrical circuit can handle the power requirements of your brewery. A typical 5-gallon brewery requires about 2250 watts, necessitating a 20-amp circuit.
